歡迎您訪問內蒙古蒙凱進出口貿易有限公司首頁!

當前位置:首頁Home>產品與服務Products & Service>重型卡車Heavy duty truck>中興特種車輛制造Zhongxing Special Vehicle Manufacturing

礦用自卸車 All

添加時間:2017-10-25

快馬礦用車以公司MK70平臺打造,國內市場首創,填補該類礦用車產品市場的空白。采用行業內得到廣泛認可的玉柴發動機、法士特變速箱、車橋承載系統及舒適豪華的駕駛室??捎糜谝苯鸬V山、露天煤礦與鐵礦、水利水電工地、有色金屬礦山、建筑工地等場所的物料運輸設備。

   采用卷繞電池,無需加注電解液。該電池壽命是普通電池的2-3倍,長達2年的質保壽命保證您放心使用。

   440馬力發動機,合理的動力匹配,使該車擁有65km/h的車速,滿足在同一場地不同車型混用時,速度效率的優化匹配。裝載50T土方在8%的坡道上能達到15km/h,

   U型斗結構,大大減輕整車整備質量,提高載重效率、增加運營效益。

   駕駛室采用氣囊減震器,比彈簧減震效果更好,使駕駛更舒適。

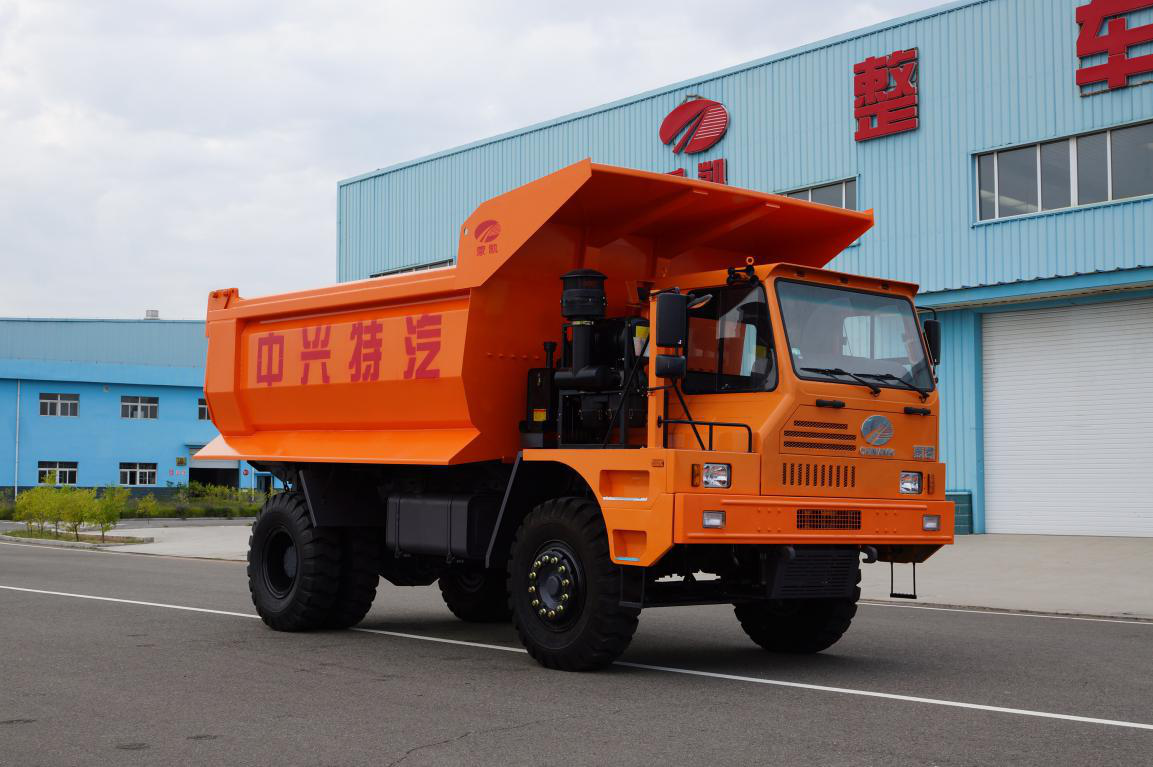

 MK Fleeting Mining Truck from mining truck MK70 (of ZSVM) as a platform, being the domestic pioneer to fill the niche of the same type of coal dumpers. It adopts YUCHAI engine, which is widely recognized within the domestic market; FASTRE gearbox, axle load system and comfortable/luxurious drivers cab. It can be used to transport materials for metallurgic mines, open-air coal mines and iron ore mines, water conservancy/hydropower construction sites, non-ferrous metal mines, and construction sites.

 Spiral-wound battery loaded on this mining truck requires no supplement of electrolyte. This battery is able to survive one or two times longer than ordinary batteries and the two-year warranty assures your proper use during this period.

 Driven by a 440 HP engine, and matched with appropriate powertrain, this truck is able to go at a speed of 65km/h. Also, this truck is easy to coordinate with other vehicles on the same ground to maximize efficiency. Loading 50T earthworks, it is able to climb 8% ramp at 15km/h.

 The U-type bucket which greatly reduces the curb weight can improve load efficiency and increase benefits.

 The divers cabin is equipped with air bag shock absorbers which are more effective than spring shock absorbers, so as to provide a more comfortable drive.

MK50兩軸礦用車以公司MK70平臺打造,國內市場首創,填補該類礦用車產品市場的空白。采用行業內得到廣泛認可的玉柴發動機、法士特變速箱、車橋承載系統及舒適豪華的駕駛室??捎糜谝苯鸬V山、露天煤礦與鐵礦、水利水電工地、有色金屬礦山、建筑工地等場所的物料運輸設備。

 Biaxal mining truck MK50 derives from mining truck MK70 (of ZSVM) as a platform, being the domestic pioneer to fill the niche of the same type of coal dumpers. It adopts YUCHAI engine, which is widely recognized within the domestic market; FASTRE gearbox, axle load system and comfortable/luxurious drivers cab. It can be used to transport materials for metallurgic mines, open-air coal mines and iron ore mines, water conservancy/hydropower construction sites, non-ferrous metal mines, and construction sites, etc.

采集多家大型露天煤礦、鐵礦的使用環境,精心研發的短距離土石方、礦石轉運的專用車輛。高效節油的發動機,寬速比的變速箱,高承載的平衡懸架及車橋,帶管路預熱的供油系統,三級六次過濾的進氣系統,高強度的車廂,能夠配套大型挖掘機施工作業,單車裝載更多物料,減少礦區車輛運輸密度,運輸效率大大提高!

The special purpose vehicle is derived from the service environments of several large open-cut coal mine and  foreign brands. Efficient & fuel-efficient engines, high-gear-ratio transmission, high load balance suspension and axle, oil-supply system with pipe-preheating, three-stage & six-passage air filtration system. High-strength bunker can operate with a large excavator and a single one of it can load more materials, thus reducing the density of mining vehicle transportation and greatly improving transport efficiency! The overall vehicle performance is tested following relevant national standards.

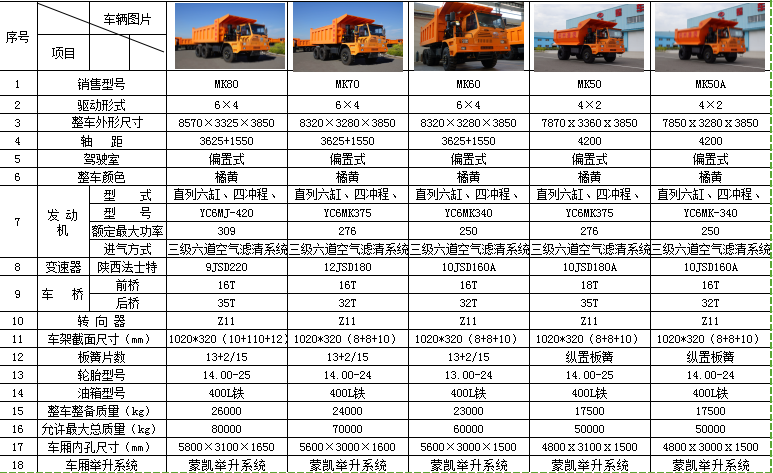

車輛型號  Model

MK60快馬

驅動形式  Driving Model

6×4

軸   距  Wheel Base(mm)

3625+1550

發動機型號 Engine

YC6MJ440L-T20

變速器  Gearbox

10JSD220A

車   橋  Axle

Front 13T   Rear 25T

輪胎規格 Tyre Size

13.00

整車整備質量 Kerb Weight(kg)

23000

允許最大總質量Payload Capacity(kg)

60000

車廂內部尺寸Inside Body Size(mm)

5600×3000×1500

整車外形尺寸 Vehicle Shape Size(mm)

8350×3235×3830

最高車速 Max.Speed(km/h)

65

最大爬坡度 Grade Ability(%)

45

最小轉彎半徑 Min.Turning Radius(m)

11

車廂舉升系統 Lifting System

MK Lifting System

車輛型號  Model

MK50

驅動形式  Driving Model

4×2

軸   距  Wheel Base(mm)

4200

發動機型號 Engine

YC6MK340  YC6MK375

變速器  Gearbox

10JSD160A  9JSD180A

車   橋  Axle

Front 18T   Rear 35T

輪胎規格 Tyre Size

14.00

整車整備質量 Kerb Weight(kg)

17500

允許最大總質量Payload Capacity(kg)

50000

車廂內部尺寸Inside Body Size(mm)

4800×3000×1600

整車外形尺寸 Vehicle Shape Size(mm)

7580×3280×3850

最高車速 Max.Speed(km/h)

49

最大爬坡度 Grade Ability(%)

40

最小轉彎半徑 Min.Turning Radius(m)

10.5

車廂舉升系統 Lifting System

MK lifting system

Model

MK60

MK70

MK80

Driving Model

6×4

6×4

6×4

Wheel Base(mm)

3625+1550

3625+1550

3625+1550

Engine

YC6MK340

YC6MK375

YC6MJ-420

Gearbox

10JSD160A

12JSD180

9JSD220

Axle

Front 16T   Rear 32T

Front 16T   Rear 32T

Front 16T   Rear 35T

Tyre Size

13.00

14.00

14.00

Kerb Weight(kg)

23000

24000

26000

Payload Capacity(kg)

60000

70000

80000

Inside Body Size(mm)

5600×3000×1500

5600×3000×1600

5800×3100×1650

Vehicle Shape Size(mm)

8320×3280×3850

8320×3280×3850

8570×3325×3850

Max.Speed(km/h)

49

49

49

Grade Ability(%)

40

40

40

Min.Turning Radius(m)

11

11

11

Lifting System

MK lifting system

MK lifting system

MK lifting system
